4 Axis CNC Router Machine 1530

Key Benefits

• Large-Format 1500 × 3000 mm Capacity: Processes full 5 × 10 ft sheets and large components with fewer setups and improved production efficiency.
• Advanced 4-Axis Machining: Supports coordinated multi-axis cutting for angled features, curved surfaces, deep relief work, and complex 3D components.
• High Precision and Repeatability: Precision linear guides, rack-and-pinion X/Y transmission, and ball-screw Z movement provide smooth, accurate positioning.

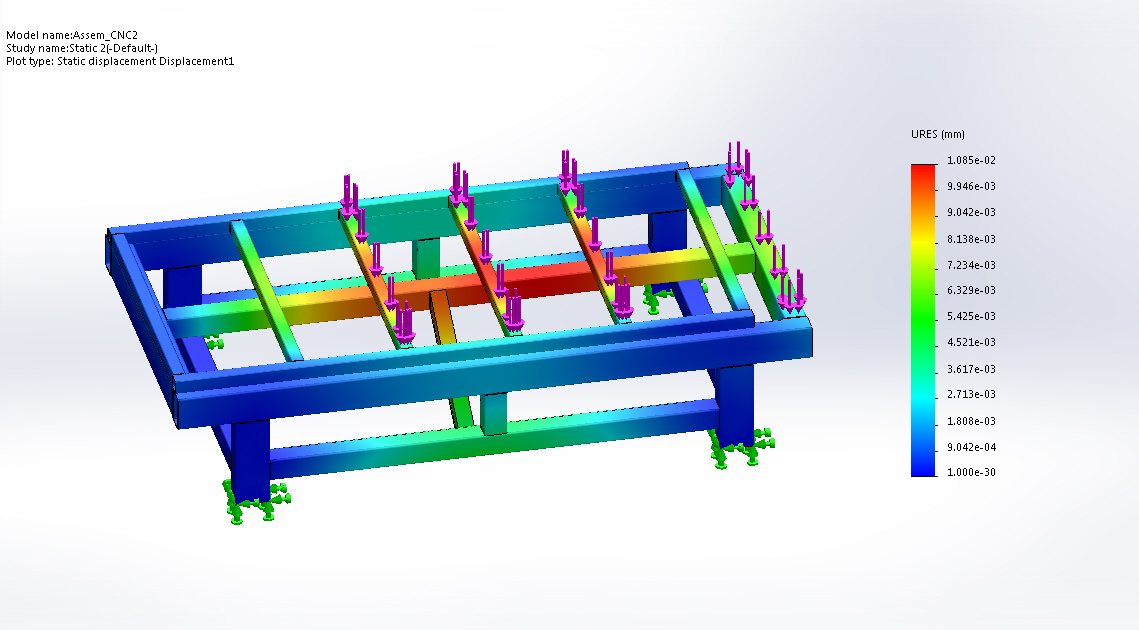

• Rigid Industrial Construction: Heavy welded steel frame and reinforced gantry reduce vibration and help maintain accuracy during demanding machining cycles.
• High-Speed Production: Servo-driven motion and a high-speed spindle support efficient cutting, engraving, drilling, pocketing, and contouring.
• Flexible Workholding: Combined vacuum and T-slot table securely holds full sheets, panels, fixtures, and irregular workpieces.
• Wide Material Compatibility: Suitable for wood, MDF, plywood, acrylic, PVC, plastics, composites, foam, and light non-ferrous-metal machining with the correct tooling.

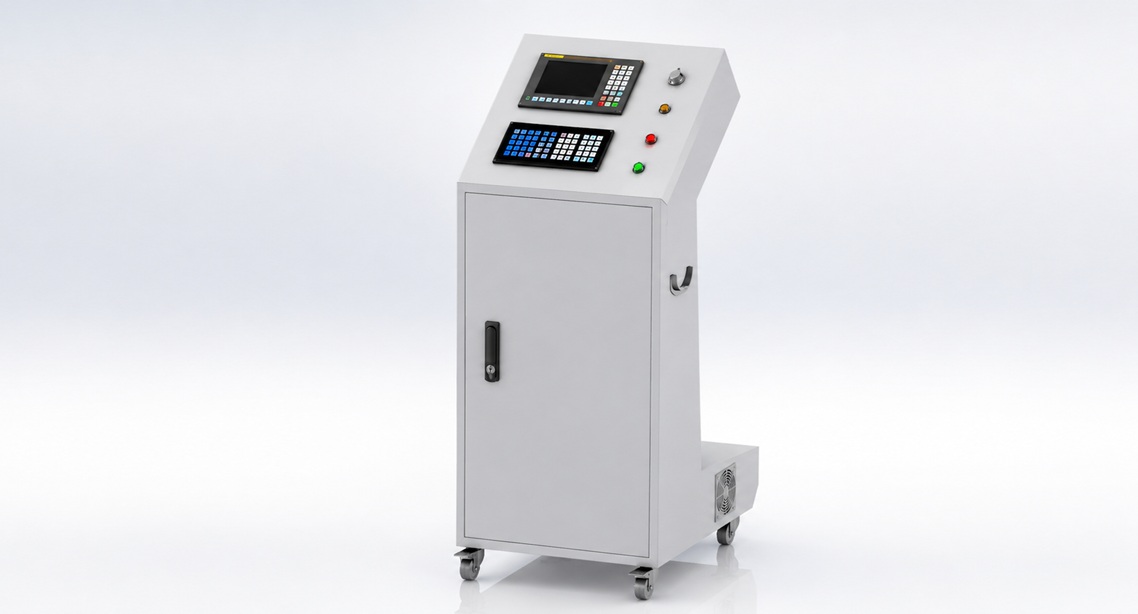

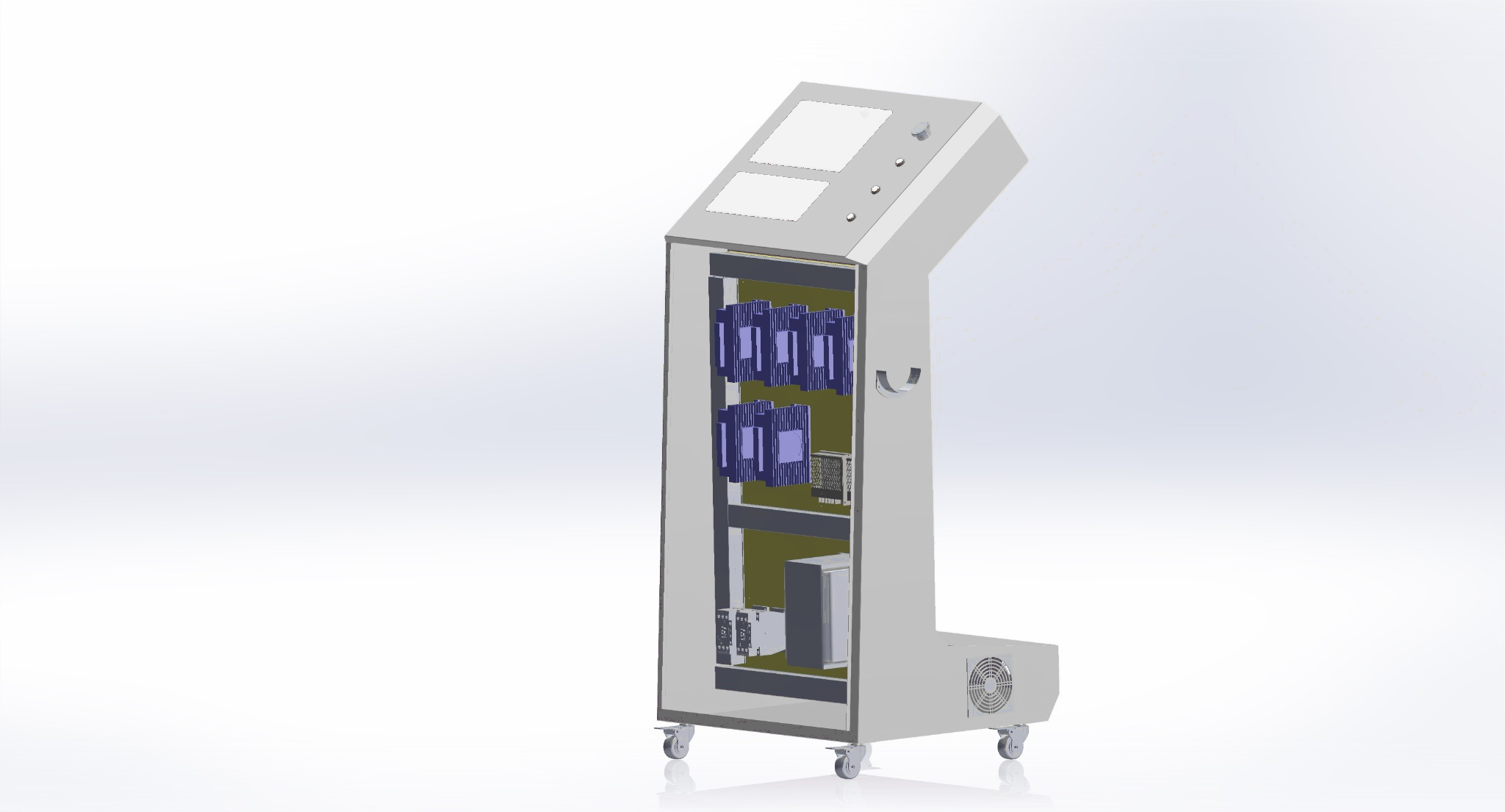

• Integrated Industrial Control: Separate control cabinet, operator interface, emergency-stop circuit, limit protection, and configurable dust-extraction connection support safe, organized operation.
• Customizable Configuration: Spindle power, Z travel, controller, tooling system, vacuum zones, rotary accessories, and electrical supply can be matched to the application.

Technical Specifications

• Machine Type: Industrial 4-axis CNC router
• Working Area: 1500 × 3000 mm
• Z-Axis Travel: 200–300 mm, configurable
• Axis Control: X, Y, Z plus coordinated fourth axis
• Spindle: 6–9 kW air-cooled spindle, application dependent
• Spindle Speed: Up to 18,000–24,000 rpm
• Positioning Accuracy: Approximately ±0.03 mm per 300 mm
• Repeatability: Approximately ±0.03 to ±0.05 mm
• Maximum Rapid Travel: Up to 40–50 m/min
• Maximum Working Speed: Up to 15–30 m/min, material and tooling dependent
• X/Y Drive: Precision helical rack-and-pinion transmission with linear guide rails

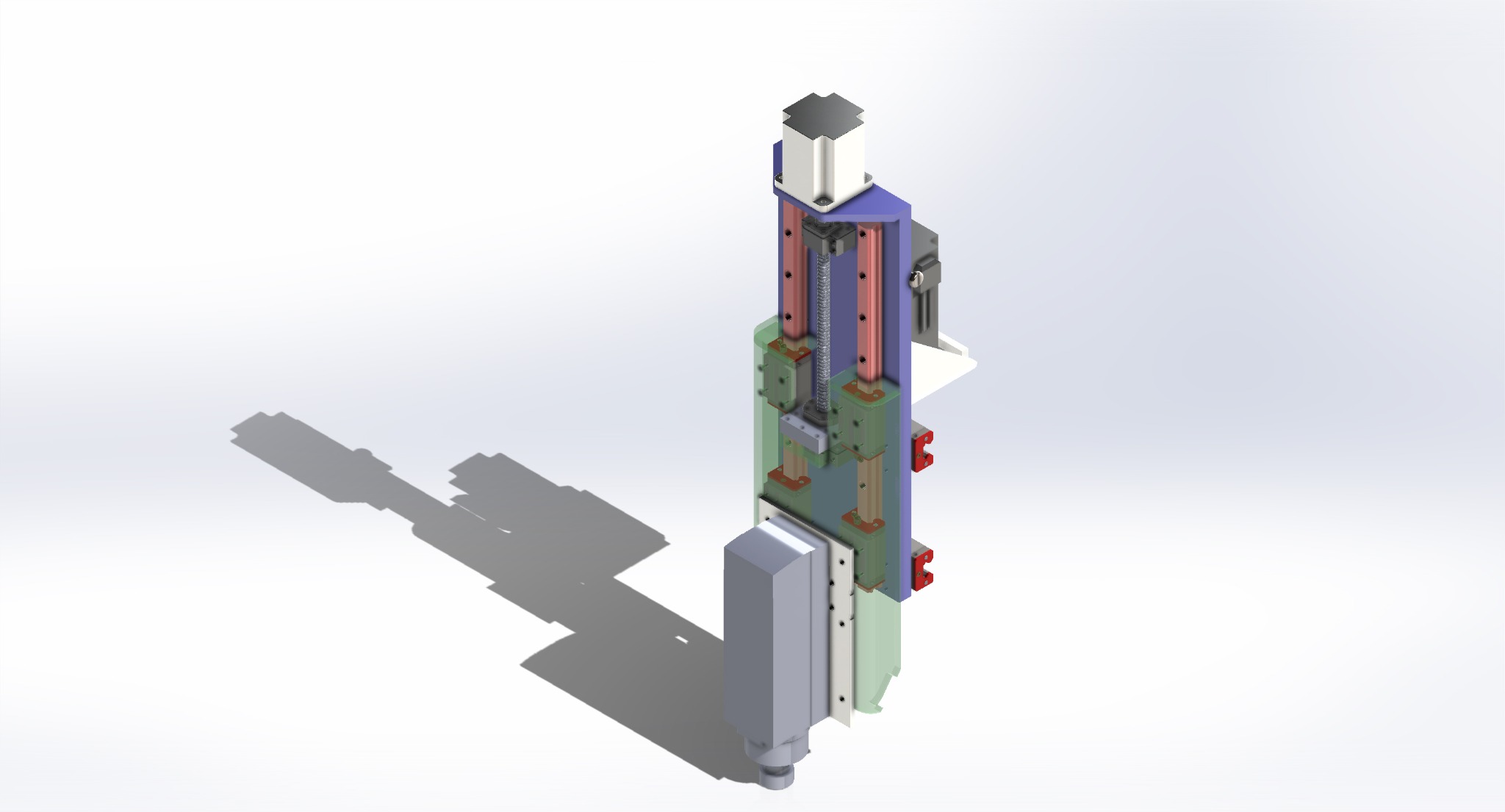

• Z Drive: Precision ball screw with linear guide rails
• Drive Motors: Closed-loop servo system
• Worktable: Multi-zone vacuum table with T-slot clamping
• Control System: Industrial CNC controller supporting standard G-code
• Machine Frame: Heavy-duty welded and stress-relieved steel structure
• Electrical Supply: 380 V AC, three-phase, 50/60 Hz; other supplies available by configuration
• Safety Features: Emergency stop, travel-limit protection, spindle overload protection, and enclosed control cabinet
• Optional Equipment: Automatic tool changer, tool-length sensor, rotary attachment, mist cooling, vacuum pump, and dust collector

Final performance values depend on the selected spindle, controller, drive system, tooling, material, and machine configuration.
