Linear Actuation

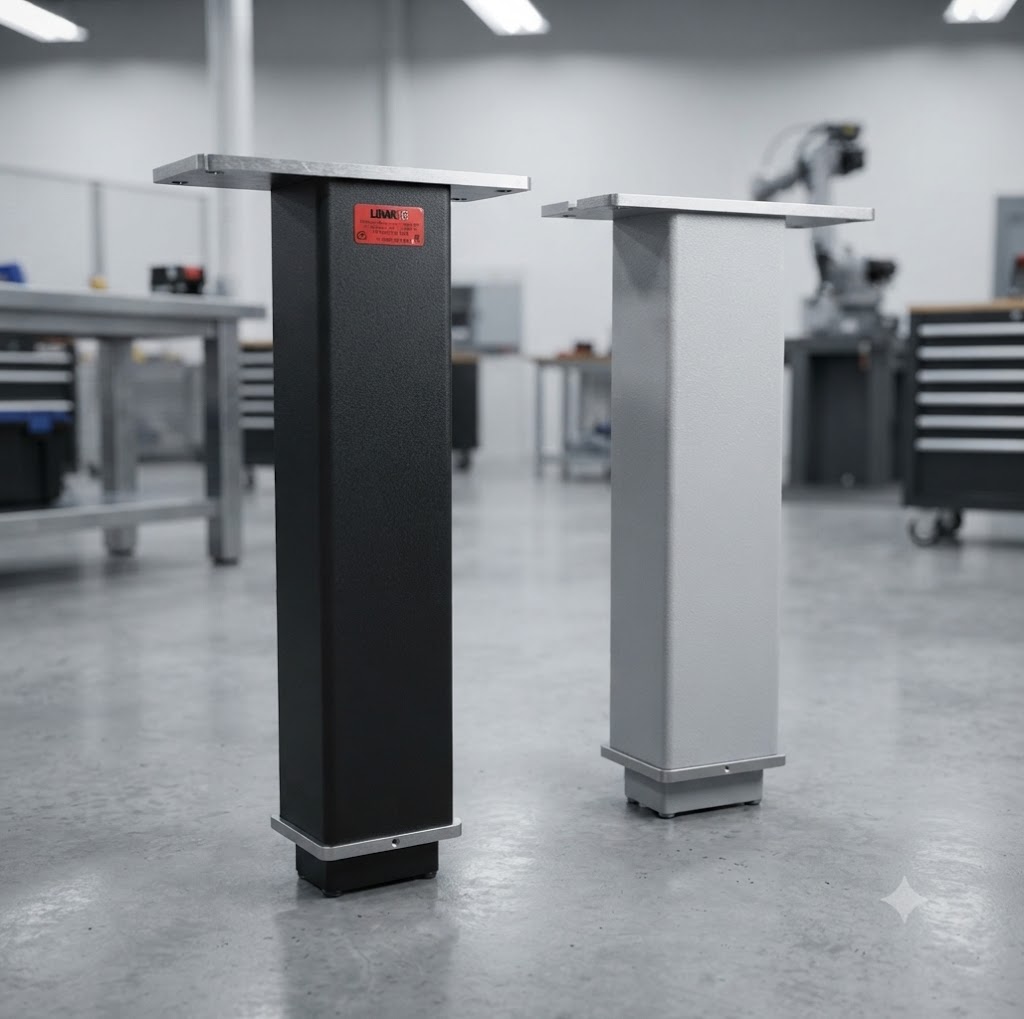

Electric Lifting Column LC4
Heavy-duty, low-voltage lifting column engineered for smooth and reliable vertical positioning in medical equipment, workstations, and custom industrial systems.
Key Benefits
- Heavy-Duty Lifting Capacity: Configurable lifting-force range from approximately 110 kg up to 400 kg, depending on the selected column and application.
- 100% Duty-Cycle Operation: Designed for continuous-duty applications requiring frequent or sustained vertical movement.
- Safe Low-Voltage Drive: Operates from a 12 or 24 V DC supply for straightforward integration into medical, workstation, and industrial control systems.
- Bearing-Guided Motion: Bearing-supported telescopic movement reduces friction, limits power loss, and supports smooth travel under load.
- Strong Steel Construction: Rigid steel structure provides dependable performance and resistance to centric loads and bending moments.
- Compact Integration: Square-column format and flat mounting plates simplify installation beneath tables, platforms, and custom equipment.
- Customizable Configuration: Stroke, retracted height, mounting plates, finish, colour, controls, and cabling can be adapted to the project.
- Broad Application Range: Suitable for height-adjustable medical tables, industrial workstations, inspection equipment, and automation systems.
Technical Specifications
- Product Type: Electric telescopic lifting column
- Model: LC4
- Nominal Lifting Range: Approximately 110–400 kg, configuration-dependent
- Operating Voltage: 12 or 24 V DC
- Duty Cycle: 100% continuous duty
- Guidance System: Bearing-supported telescopic movement
- Main Construction: Heavy-duty steel structure
- Protection Level: IPX1
- Mounting: Top and bottom steel mounting plates
- Control: Reversible Up/Down DC control; project-specific controller options
- Stroke and Closed Height: Customized to application requirements
- Finish: Powder-coated steel; custom colours available
- Typical Applications: Medical furniture, adjustable workstations, inspection systems, and industrial automation
- Configuration Note: Final load, stroke, speed, dimensions, and control details are confirmed for each project
Need specifications or customization?
Send the required load, stroke, closed height, speed, mounting, finish, quantity, and control requirements.
