Garden Lighting

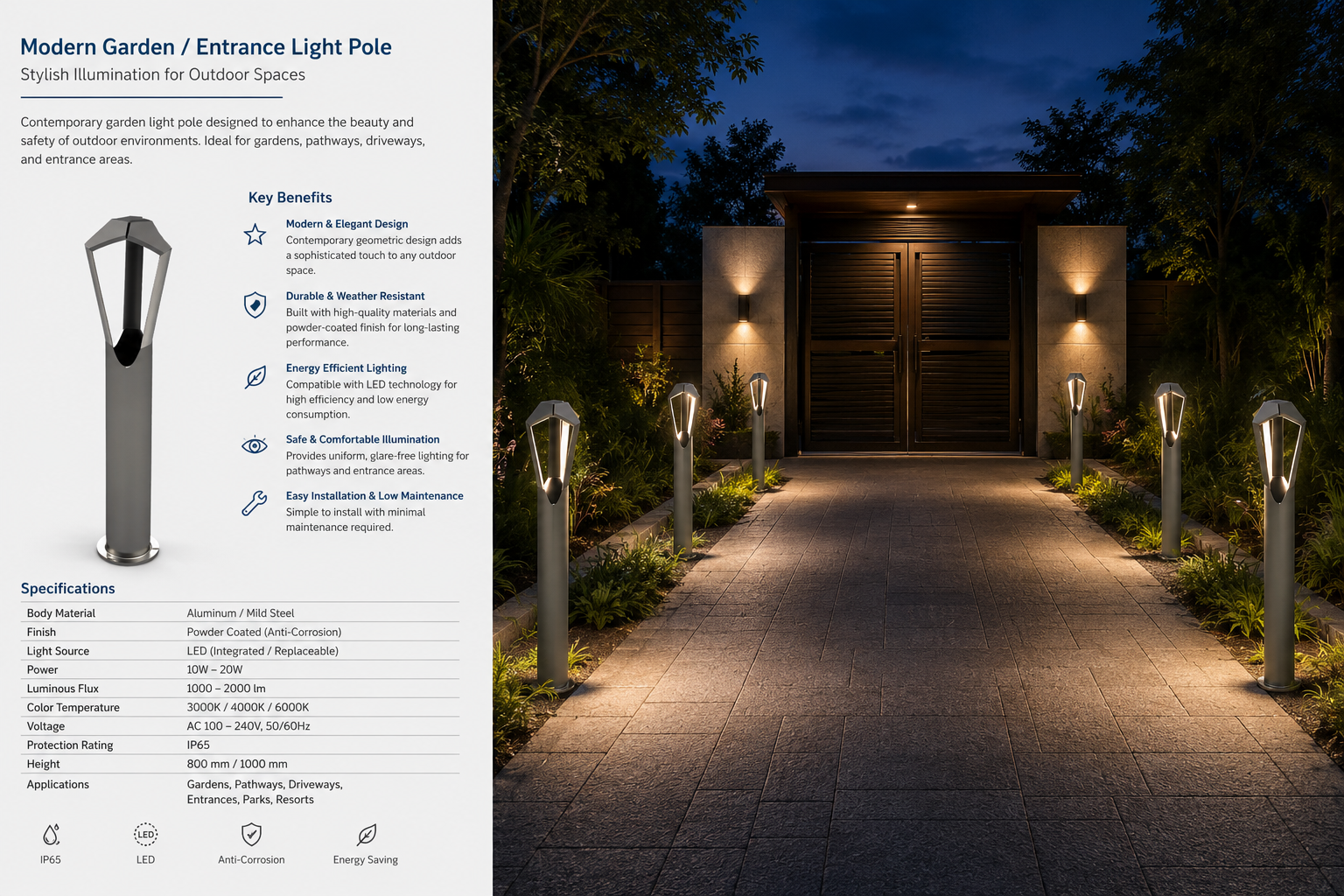

Garden Light Pole Model LPG1
Architectural LED garden and entrance bollard for garden gates, villa entrances, hotel approaches, landscaped walkways, compounds, parks, and pedestrian paths.
Key Benefits
- Distinctive Architectural DesignA modern lantern-inspired head creates a recognizable feature at garden gates, residential entrances, hotel approaches, and landscaped walkways.
- Comfortable Entrance IlluminationThe elevated light source can provide broad, uniform ground coverage for safer pedestrian movement and clearer identification of entrance boundaries.
- Reduced GlareThe upper reflector and shielded internal source can direct light downward and outward rather than exposing the LED directly to pedestrians.

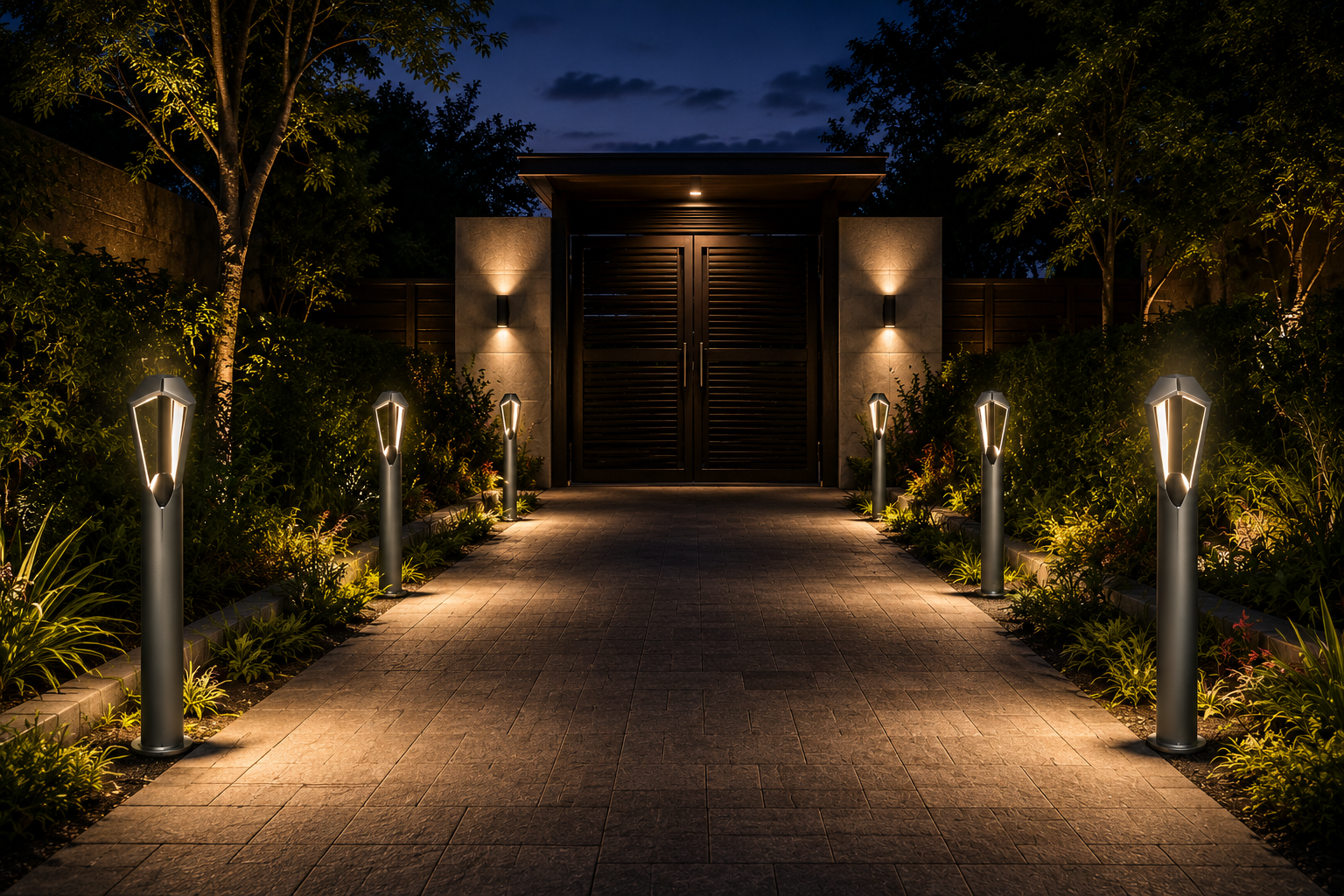

- Visual Guidance and SafetyRepeated units along both sides of a pathway establish a clear route, highlight changes in level, and improve nighttime orientation.
- Durable Outdoor ConstructionA sealed metal body, corrosion-resistant finish, impact-resistant diffuser, and protected electrical compartment support permanent exterior installation. Project configurations can target IP66 and IK10 performance, subject to final design and testing.
- Energy-Efficient and Low MaintenanceAn integrated LED module provides lower operating power and longer service intervals than traditional replaceable lamps.
- Customizable ConfigurationHeight, body finish, colour temperature, optical distribution, dimming, and smart-control options can be adapted to the entrance or landscape project.
Recommended Preliminary Specifications
| Product type | Architectural LED garden and entrance bollard |
|---|---|
| Overall height | 800–1000 mm; optional shorter version around 600 mm |
| Body | Fabricated steel, galvanized steel, or aluminium |
| Head construction | Open geometric metal frame with internal reflector |
| Finish | Exterior-grade powder coating; dark grey, anthracite, black, or custom RAL |
| LED power | Approximately 10–18 W |
| Delivered output | Approximately 700–1200 lm |
| Colour temperature | 3000 K standard; 2700 K and 4000 K optional |
| Colour rendering | CRI ≥80 |
| Light distribution | Wide symmetric downward distribution with glare shielding |
| Ingress protection | IP65 minimum; IP66 preferred |
| Impact resistance | IK08 minimum; IK10 preferred |
| Input supply | 220–240 V AC, 50/60 Hz |
| Driver | Integral constant-current LED driver |
| Controls | ON/OFF standard; photocell, timer, 1–10 V, or DALI optional |
| Mounting | Surface flange with concealed anchor bolts |
| Lens or diffuser | UV-stabilized polycarbonate or tempered safety glass |
| Typical applications | Villas, gardens, hotel entrances, compounds, parks, and pedestrian paths |
Preliminary specification notice: These are target specifications based on comparable professional products, not verified measurements from the rendering. Final wattage, lumen output, beam distribution, spacing, and IP/IK ratings should be confirmed through prototype testing, photometric assessment, and supplier documentation before publication.
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
