Industrial Enclosures

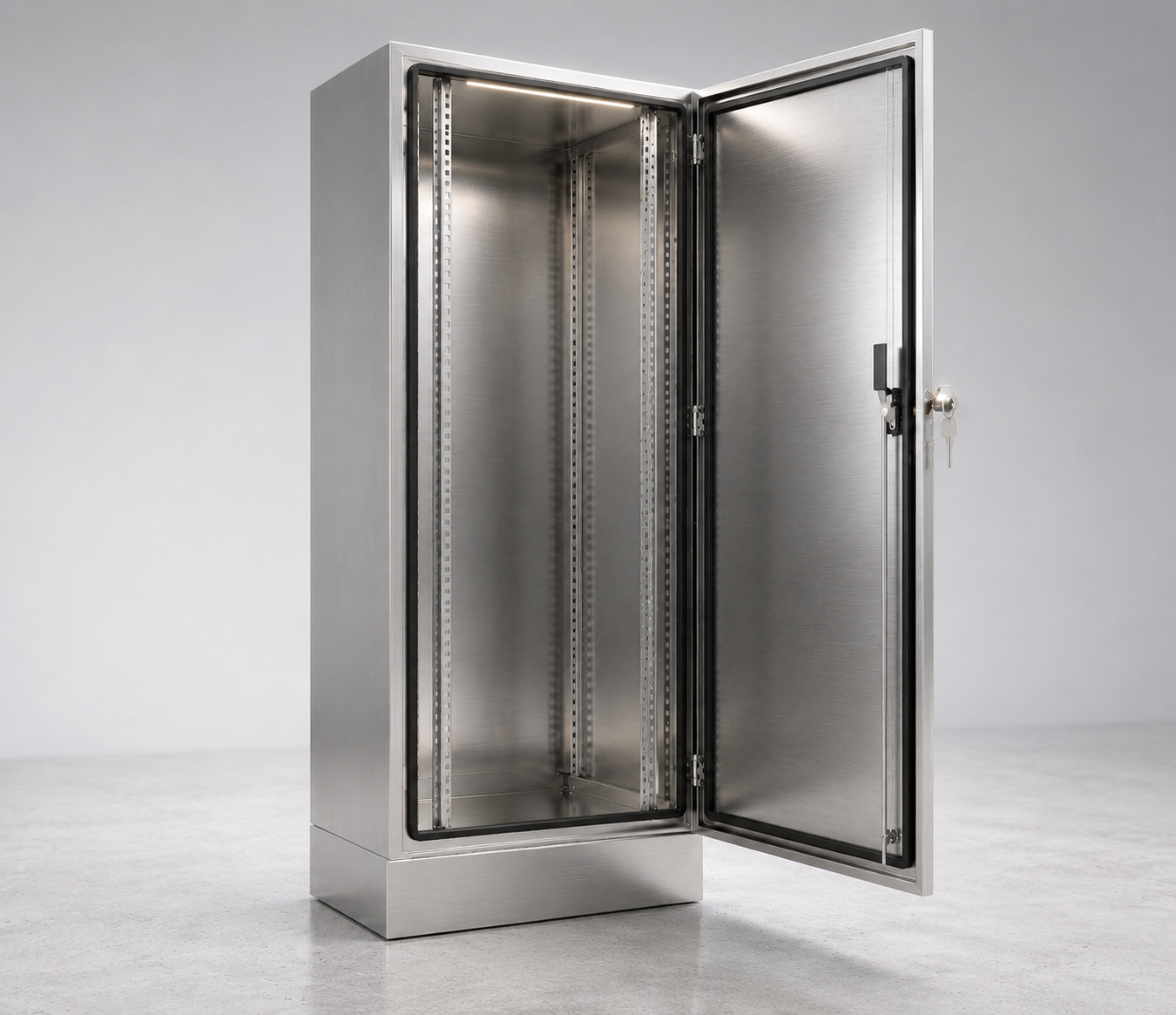

Stainless Steel Industrial Enclosure
Floor-standing stainless-steel enclosure designed to protect electrical, automation, instrumentation, and control equipment in corrosive or demanding industrial environments.
Key Benefits
- Corrosion-Resistant Construction: Stainless-steel body and door provide long service life in humid, corrosive, and demanding industrial locations.
- Sealed Equipment Protection: A perimeter-gasketed door helps limit dust and water ingress around sensitive electrical and control components.
- Secure Locking: Lockable door hardware helps prevent unauthorized access, accidental contact, and equipment tampering.
- Flexible Internal Installation: Vertical rails and mounting-panel provisions support organized installation of control, power, and instrumentation components.
- Easy-Clean Surface: Smooth, non-porous stainless-steel surfaces are easy to maintain and suitable for facilities requiring regular cleaning.
- Floor-Standing Stability: Rigid cabinet construction and plinth-style base provide stable installation for large or heavily populated assemblies.
- Custom Engineering: Dimensions, doors, cable entries, cut-outs, cooling, internal lighting, and mounting accessories can be adapted to the project.
- Broad Industrial Use: Suitable for automation panels, machine controls, process instrumentation, utilities, food-processing support areas, and infrastructure projects.
Technical Specifications
- Product Type: Floor-standing industrial electrical enclosure
- Construction: Welded stainless-steel cabinet with reinforced hinged door
- Material Options: AISI 304 or AISI 316 stainless steel, selected according to the operating environment
- Surface Finish: Brushed or project-specified stainless-steel finish
- Door Sealing: Continuous perimeter gasket with lockable door hardware
- Protection Capability: Can be engineered for protection levels up to IP66 when specified with compatible seals, hardware, and cable-entry systems
- Internal Mounting: Adjustable vertical rails and provision for mounting panels, DIN rails, and equipment supports
- Installation: Floor-standing or plinth-mounted configuration
- Cable Entry: Custom bottom or side gland plates and machined entries available
- Accessories: Mounting plates, rails, ventilation, filter fans, cooling, heaters, thermostats, lighting, and grounding accessories
- Dimensions: Custom dimensions and internal layout available according to equipment and site requirements
- Typical Applications: Industrial control panels, automation systems, instrumentation, power distribution, and process equipment
Need specifications or customization?
Send the required dimensions, stainless-steel grade, protection level, internal layout, cable entries, accessories, quantity, and installation environment.
