Network & Low Voltage

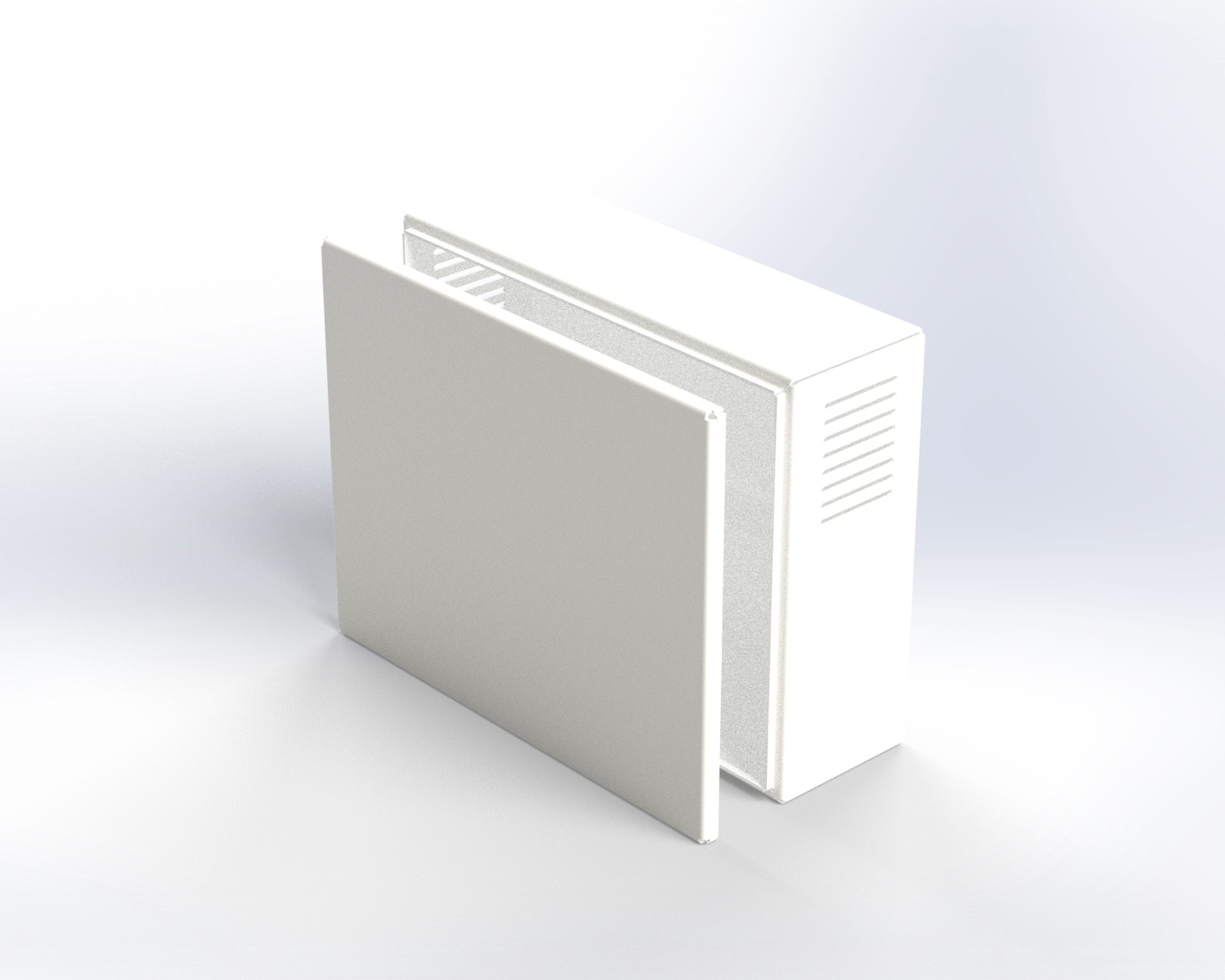

Router & Low-Voltage Equipment Enclosure
Compact ventilated enclosure for secure, organized installation of routers, fiber ONTs, small network switches, CCTV power equipment, IoT gateways, and other low-voltage devices.
Key Benefits
- Space-Saving Wall Installation: Compact wall-mounted format keeps communication equipment organized and frees valuable desk or floor space.
- Equipment Security: A lockable or screw-secured front cover helps reduce tampering, accidental disconnection, and unauthorized access.
- Passive Ventilation: Integrated ventilation slots promote natural airflow around routers, power supplies, switches, and communication devices.
- Organized Cable Routing: Custom cable entries and internal routing points help separate power, data, fiber, and low-voltage wiring.
- Easy Service Access: Removable or hinged cover options provide convenient access for installation, inspection, and maintenance.
- Flexible Device Mounting: Internal tray, backplate, shelf, or bracket arrangements can be adapted to different equipment sizes.
- Clean Installation Finish: Conceals equipment, adapters, and excess cabling for a professional installation in offices, retail, clinics, and public facilities.
- Multi-Application Design: Suitable for routers, wireless access points, fiber ONTs, small switches, CCTV power supplies, intercom systems, and IoT controllers.
Technical Specifications
- Product Type: Wall-mounted router, network, and low-voltage equipment enclosure
- Construction: Fabricated powder-coated sheet steel
- Door / Cover: Removable or hinged front cover with optional lock
- Ventilation: Passive side or top ventilation slots; optional fan provision
- Internal Mounting: Backplate, device shelf, brackets, and cable-management points configured to equipment requirements
- Cable Entry: Custom gland holes, grommeted openings, conduit entries, and optional RJ45 or power pass-throughs
- Finish: Light-colour powder coating as shown; custom colours available
- Installation: Wall-mounted; optional surface or recessed mounting arrangement
- Power Integration: Optional internal outlet, fused input, surge protection, or low-voltage power-supply mounting
- Security: Optional keyed lock, quarter-turn latch, or tamper-resistant fasteners
- Dimensions: Custom width, height, and depth according to router, switch, power supply, and cable-bend requirements
- Typical Applications: Wi-Fi routers, fiber ONTs, compact Ethernet switches, CCTV equipment, intercoms, access-control devices, and IoT gateways
Need specifications or customization?
Send the device models, enclosure dimensions, cable-entry locations, ventilation, power requirements, mounting method, security level, finish, and quantity.
