Examination Equipment

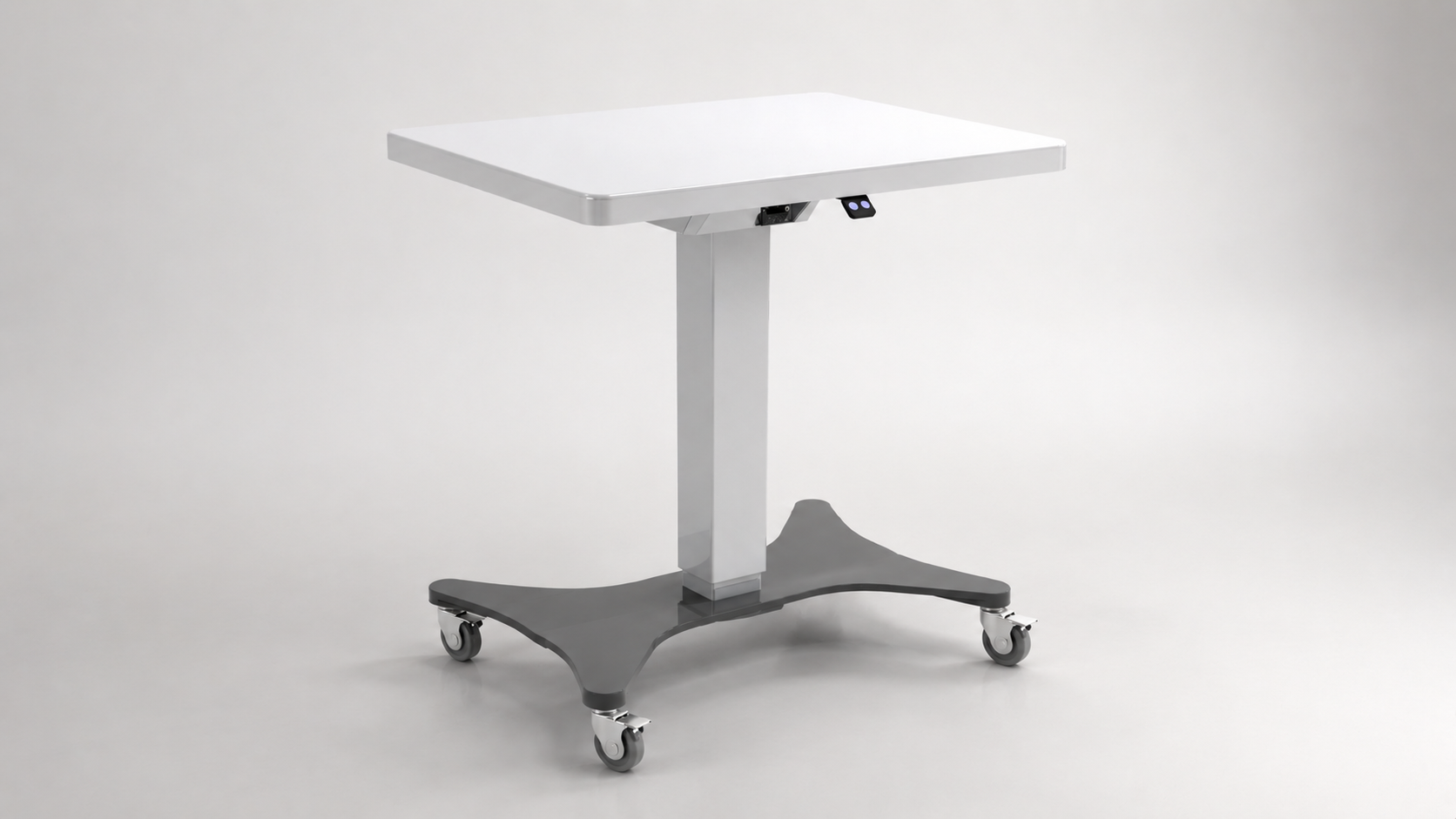

Electrical Instrument Table TA-60S
Height-adjustable electrical instrument table with smooth motorized positioning. Built for clinical efficiency and patient accessibility with an internal lifting-column design.
← Back to Medical Furniture
Key Benefits
- Precise Positioning: MCU-based speed control provides accurate height adjustment with smooth, stable movement.
- Soft Start & Soft Stop: Smooth acceleration and deceleration protect instruments and improve patient comfort.
- 100% Duty-Cycle Lifting Column: Continuous-duty lifting column designed and manufactured by Medimarks Technologies for reliable, long-lasting operation.
- 60 kg Lifting Capacity: Supports up to 60 kg of medical, diagnostic and examination equipment.
- Low-Noise Operation: Quiet motorized movement suitable for hospitals, clinics and examination rooms.
- One-Touch Power Shutdown: Quick power shutdown saves energy and helps extend the life of the control electronics.
- Rigid and Durable Construction: Powder-coated steel structure with a scratch-resistant laminated tabletop.
- Mobile and Stable: Four smooth-rolling caster wheels with locking brakes provide easy movement and secure positioning.
Technical Specifications
| Specification | Product Data |
|---|---|
| Tabletop Dimensions | 60 × 40 cm |
| Height Adjustment Range | 65–90 cm |
| Maximum Lifting Load | 60 kg |
| Lifting Column Duty Cycle | 100% continuous duty |
| Motion Control | MCU-based electronic speed control |
| Movement Profile | Soft start and soft stop |
| Operating Voltage | 100–240 V AC |
| Input Frequency | 50/60 Hz |
| Maximum Current | 1 A |
| Electrical Protection | Class II |
| Tabletop Finish | Scratch-resistant laminated surface |
| Main Construction | Rigid powder-coated steel |
| Base | Four lockable caster wheels |
| Table Weight | Approximately 26 kg |
| Safety Standard | Designed with reference to IEC 60601-1 |
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
