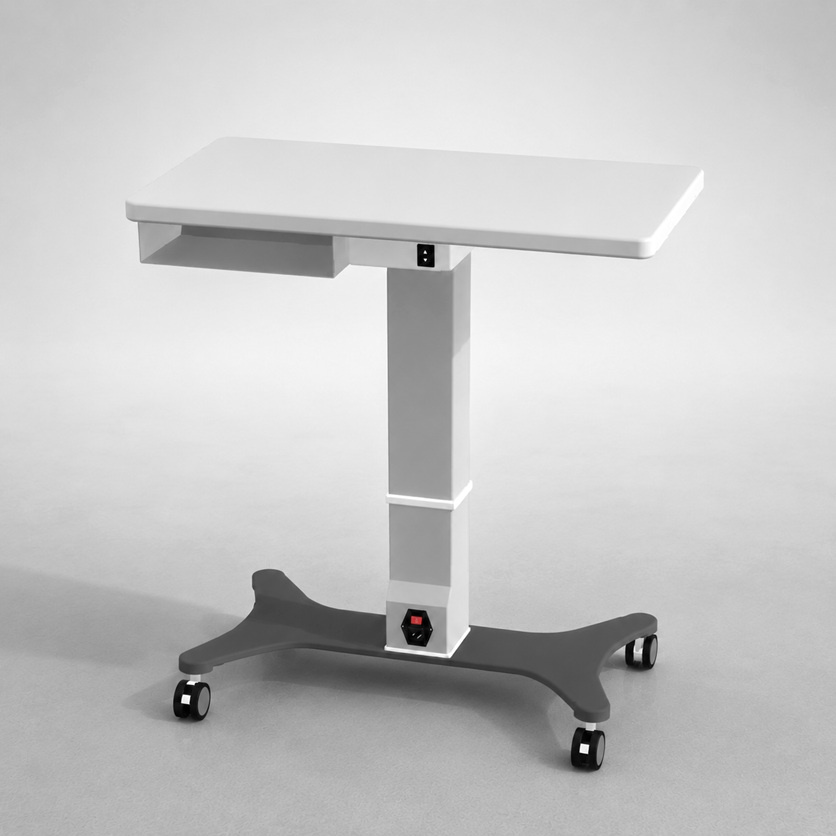

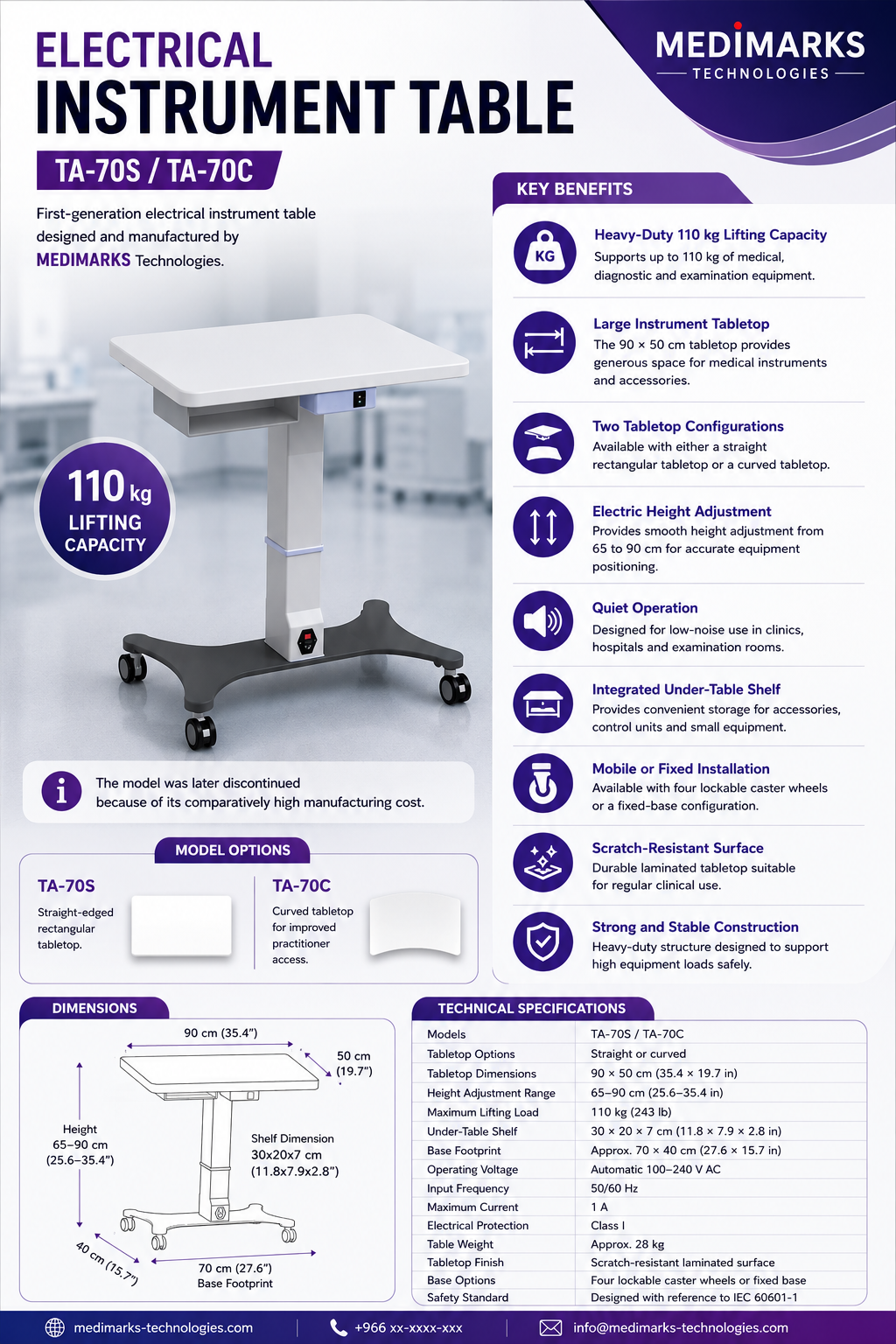

Electrical Instrument Table TA-70S / TA-70C
Examination Equipment

Electrical Instrument Table TA-70S / TA-70C

First-generation electrical instrument table designed and manufactured by MEDIMARKS Technologies. This model is discontinued.

← Back to Medical Furniture
MediMarks ProductDiscontinued Model
Request InformationDownload BrochureBack to Division

Key Benefits

  • Heavy-Duty 110 kg Lifting Capacity: Supports up to 110 kg of medical, diagnostic and examination equipment.
  • Large Instrument Tabletop: The 90 × 50 cm tabletop provides generous space for medical instruments and accessories.
  • Two Tabletop Configurations: TA-70S has a straight-edged rectangular tabletop; TA-70C has a curved tabletop for improved practitioner access.
  • Electric Height Adjustment: Provides smooth height adjustment from 65 to 90 cm for accurate equipment positioning.
  • Quiet Operation: Designed for low-noise use in clinics, hospitals and examination rooms.
  • Integrated Under-Table Shelf: Provides convenient storage for accessories, control units and small equipment.
  • Mobile or Fixed Installation: Available with four lockable caster wheels or a fixed-base configuration.
  • Scratch-Resistant Surface: Durable laminated tabletop suitable for regular clinical use.
  • Strong and Stable Construction: Heavy-duty structure designed to support high equipment loads safely.

Technical Specifications

SpecificationProduct Data
ModelsTA-70S / TA-70C
Tabletop OptionsTA-70S: straight-edged rectangular tabletop; TA-70C: curved tabletop
Tabletop Dimensions90 × 50 cm (35.4 × 19.7 in)
Height Adjustment Range65–90 cm (25.6–35.4 in)
Maximum Lifting Load110 kg (243 lb)
Under-Table Shelf30 × 20 × 7 cm (11.8 × 7.9 × 2.8 in)
Base FootprintApprox. 70 × 40 cm (27.6 × 15.7 in)
Operating VoltageAutomatic 100–240 V AC
Input Frequency50/60 Hz
Maximum Current1 A
Electrical ProtectionClass I
Table WeightApprox. 28 kg
Tabletop FinishScratch-resistant laminated surface
Base OptionsFour lockable caster wheels or fixed base
Safety StandardDesigned with reference to IEC 60601-1

Historical Note

First-generation electrical instrument table designed and manufactured by MEDIMARKS Technologies. The model was later discontinued because of its comparatively high manufacturing cost.
