Examination Equipment

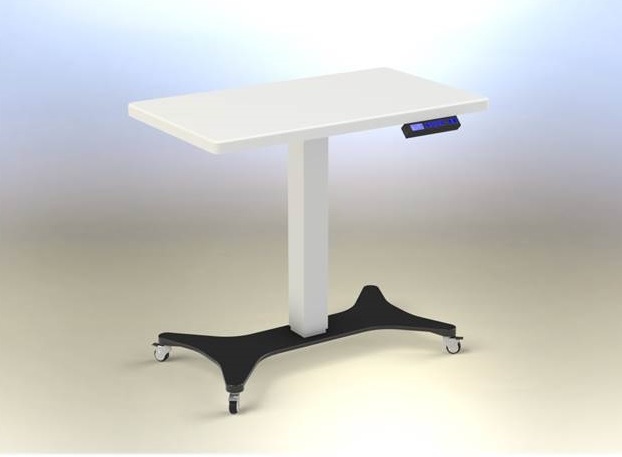

Electrical Instrument Table TB-80S
Advanced height-adjustable table designed for ophthalmic, diagnostic and examination equipment, with digital height indication and repeatable preset positioning.
← Back to Medical Furniture
Key Benefits
- 80 kg Lifting Capacity: Supports up to 80 kg of ophthalmic, diagnostic and examination equipment.

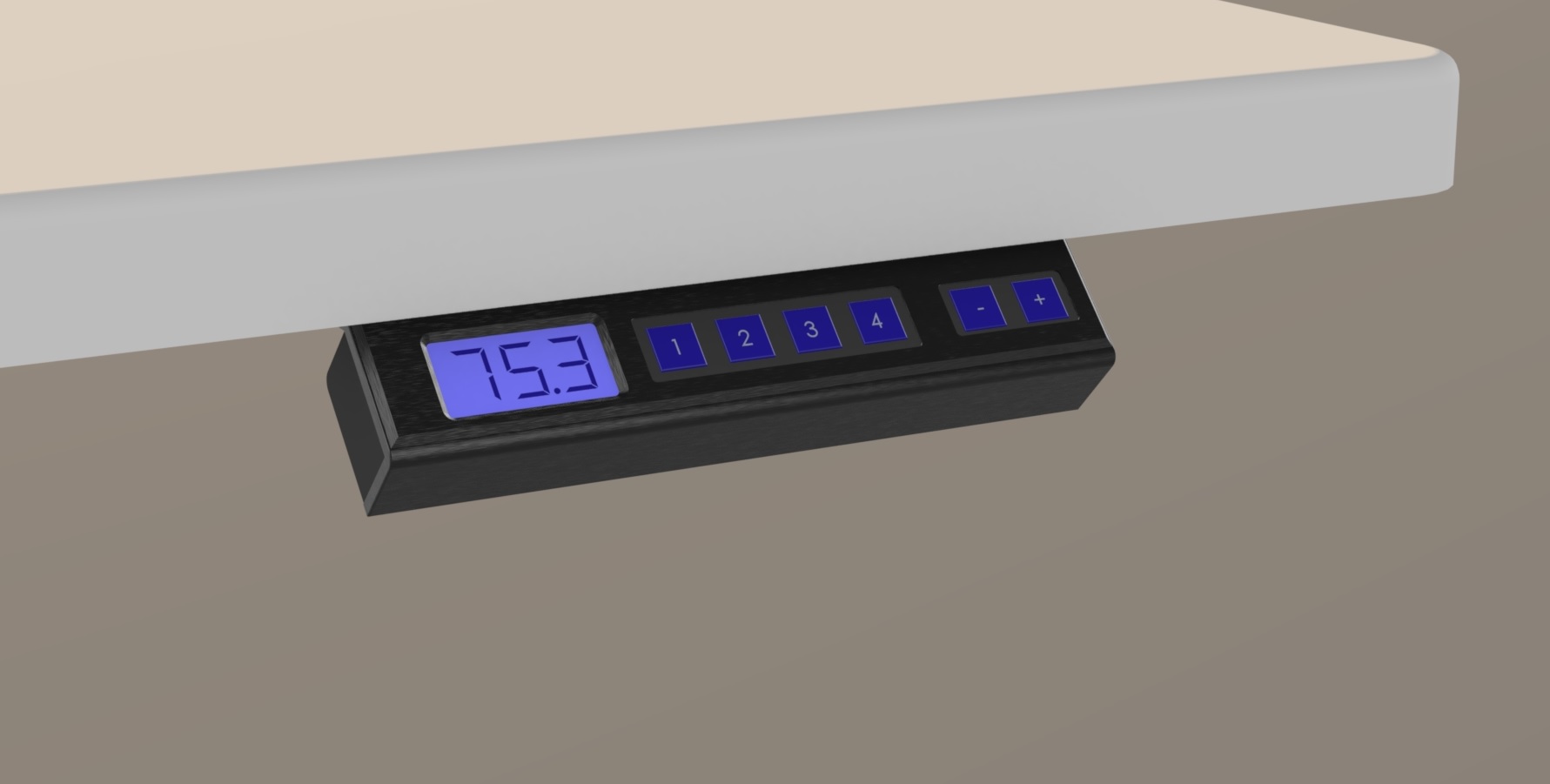

- Digital Height Display: Clearly displays the tabletop height for accurate instrument positioning.
- Four Programmable Height Presets: Stores four preferred height positions for fast and repeatable adjustment.
- Precise Electronic Positioning: MCU-based control provides accurate height adjustment with smooth and stable movement.
- Soft Start & Soft Stop: Controlled acceleration and deceleration help protect instruments and improve operating comfort.
- 100% Duty-Cycle CL3 Lifting Column: Slim continuous-duty lifting column designed and manufactured by Medimarks Technologies for reliable, long-lasting operation.
- Slim and Compact Design: The narrow CL3 column provides a modern appearance and increases the usable space beneath the tabletop.
- Mobile and Stable: Four caster wheels provide easy movement, with locking brakes for secure positioning.
- Rigid and Durable Construction: Strong powder-coated steel construction is designed for intensive daily clinical use.
Technical Specifications
| Specification | Product Data |
|---|---|
| Maximum Lifting Load | 80 kg |
| Lifting Column | Medimarks CL3 slim lifting column |
| Lifting Column Duty Cycle | 100% continuous duty |
| Column Manufacturer | Designed and manufactured by Medimarks Technologies |
| Height Control | Electronic Up/Down control |
| Height Display | Digital height display |
| Preset Positions | Four programmable height presets |
| Motion Control | MCU-based electronic speed control |
| Movement Profile | Soft start and soft stop |
| Main Construction | Rigid powder-coated steel |
| Base | Four caster wheels with locking function |
| Safety Standard | Designed with reference to IEC 60601-1 |
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
