Ophthalmic Equipment

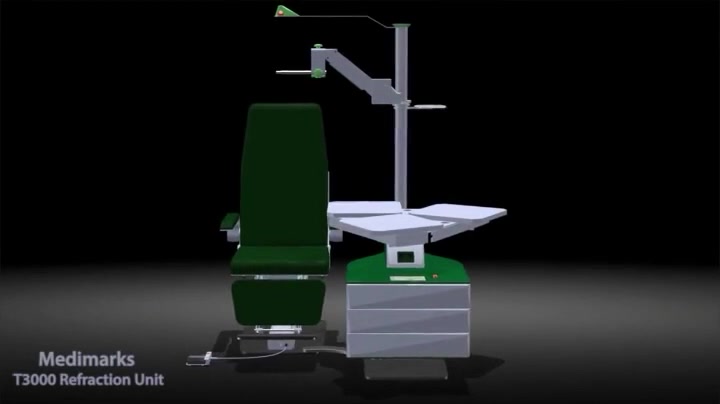

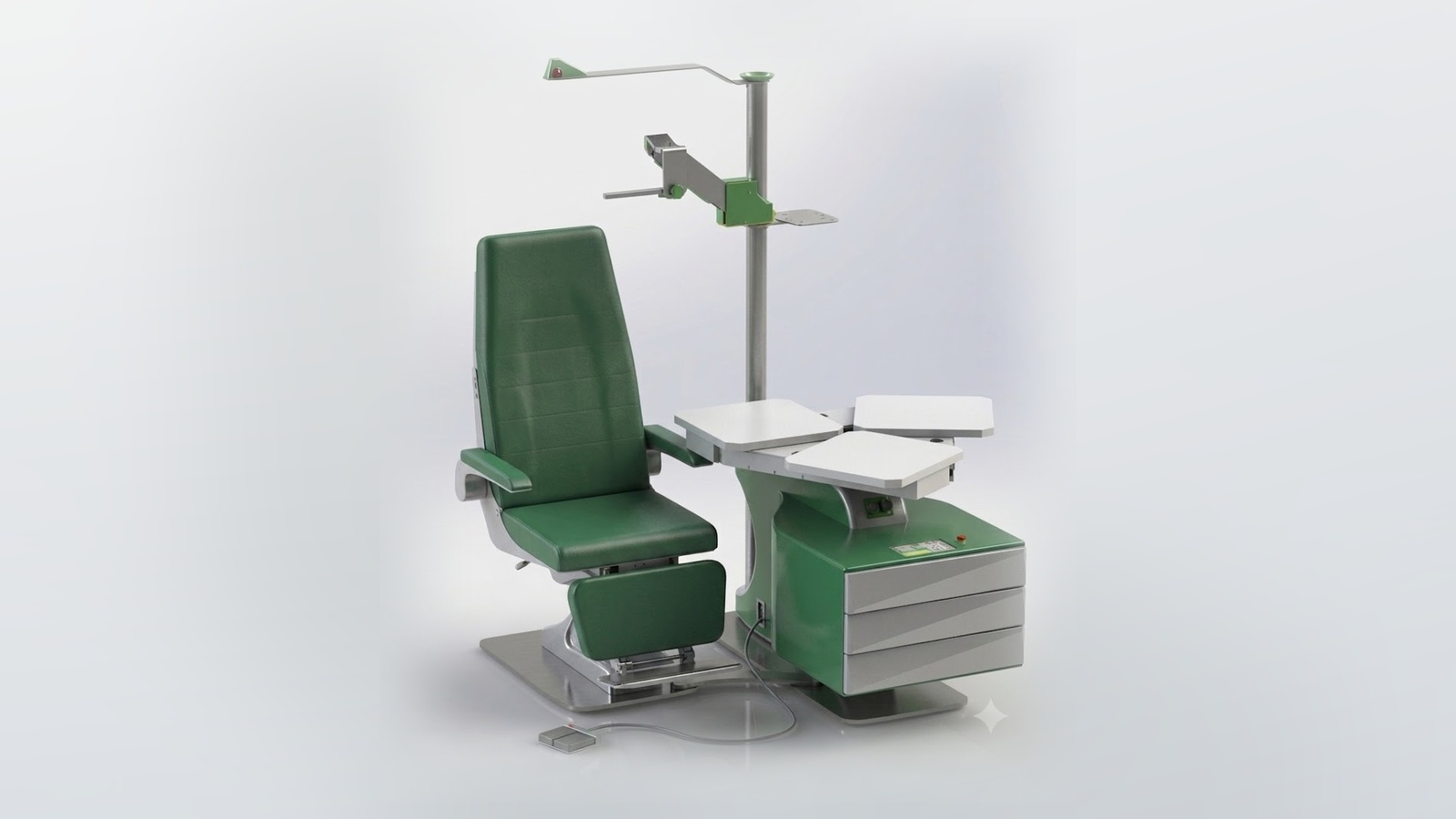

Three-Table Refractive Unit
A specialized examination unit designed for refractive procedures in ophthalmic clinics. Engineered for stability, precision, efficient workflow, and patient comfort.
← Back to Medical FurnitureKey Benefits
- Clinic Ergonomics: Optimized with a fully automated refractive layout to maximize workflow efficiency and reduce doctor strain.
- Charging Station: Two high-efficiency charging cradles featuring fully adjustable power intensity profiles.
- Examination Light: High-contrast clinical lighting equipped with stepless dimming adjustment for optimal pupillary dilation.
- Storage Capacity: Three spacious drawers specifically configured for organized storage of trial lenses, accessories, and tools.
- Refractor Arm: Micro-controlled positioning arm with built-in instant safety-stop mechanisms to protect the patient’s face.
- Wheelchair Accessibility: One-touch mode seamlessly adapts the unit configuration for wheelchair-bound patients.

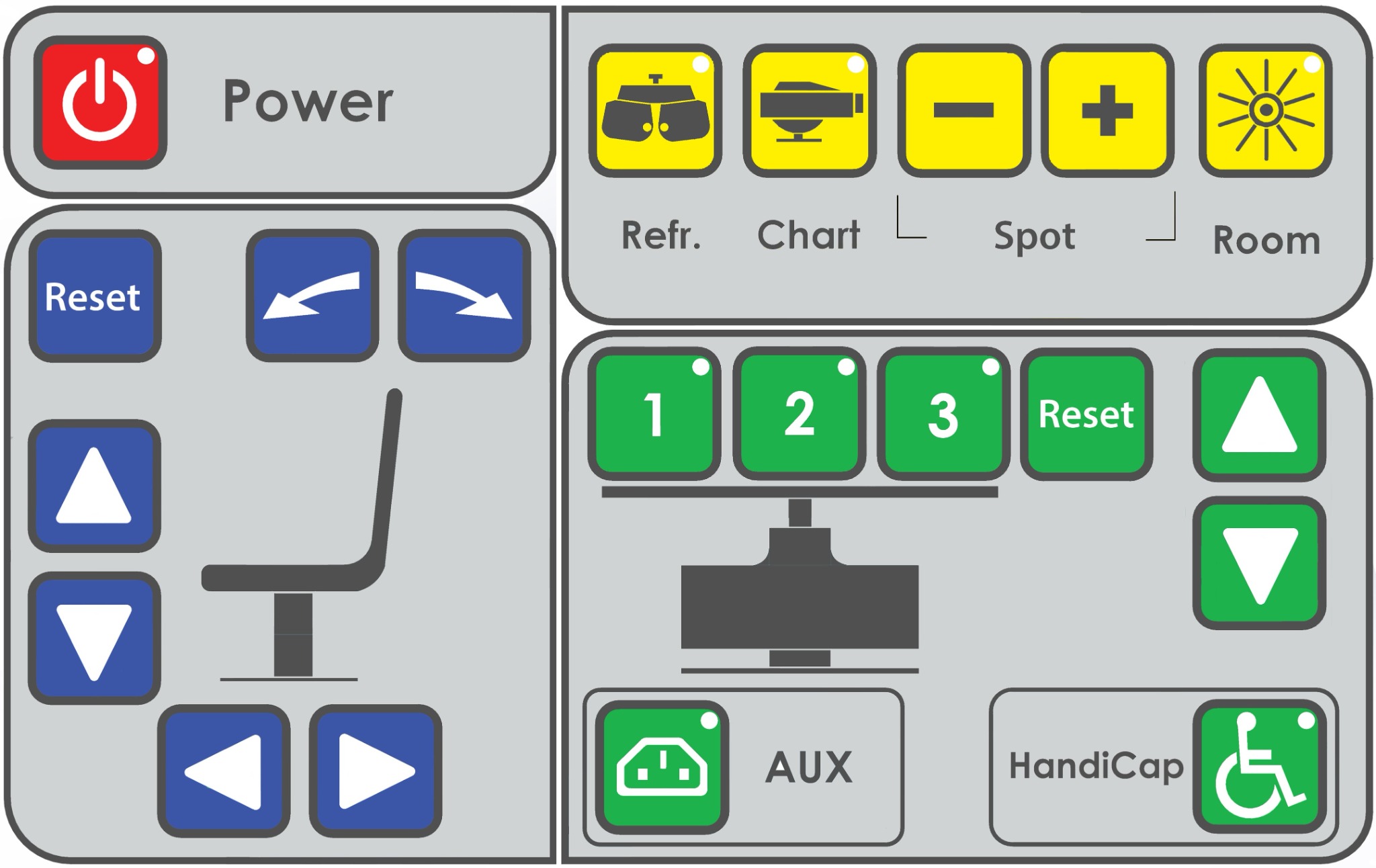

- Emergency Stop: Instantly halts all motorized motion with a single press of the emergency-stop button, any keypad button, or the foot pedal.
- Color Options: Available in a variety of color combinations to match the clinic’s interior design and branding.
Technical Specifications
- Frame Construction: Heavy-duty welded steel with chemical-resistant, non-porous surfaces optimized for clinical disinfection.
- Patient Support: Chair equipped with two medical-grade, low-noise, low-voltage insulated motors certified to IEC 60601-1 and IEC 60601-2-52 standards, featuring an integrated fail-safe static brake.
- Table Movement: Motorized rotating tables with intelligent speed control for soft start/stop, fluid positioning, and silent micro-stepping vibration isolation.
- Safety Metrics: Multi-point system including active anti-crush sensors and electronic pinch-point detection.
- Power Architecture: Integrated medical-grade power supply featuring an automatic universal input-voltage range selector, compliant with IEC 60601-1 (2 × MOPP patient isolation) and IEC 60601-1-2 EMC compatibility.
- Electrical Ratings: Universal input voltage of 100–240 V AC (50/60 Hz) with an efficient maximum power consumption of 350–500 VA under peak simultaneous motor load.
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
