Ophthalmic Equipment

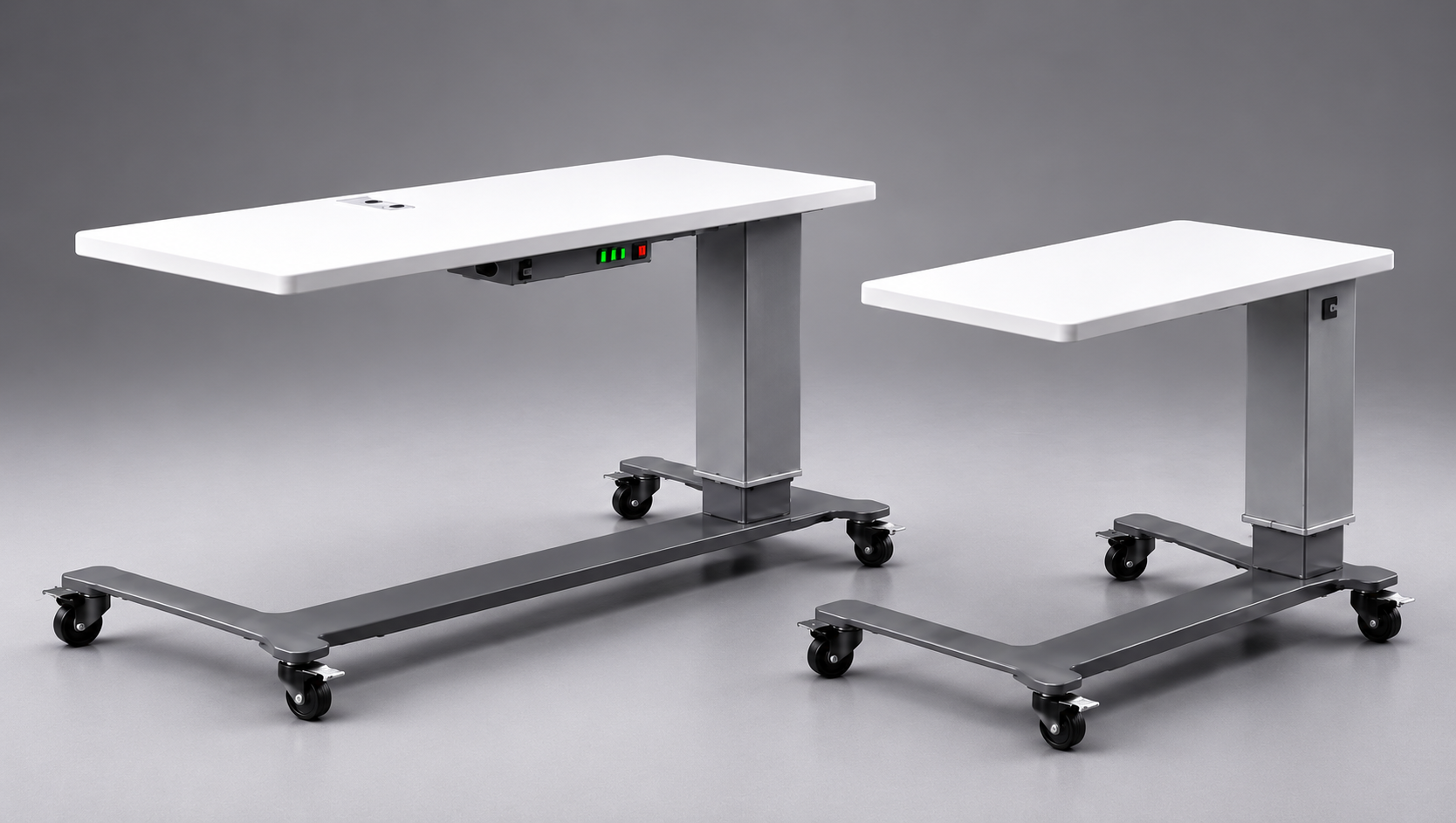

Wheelchair Electrical Instrument Table TL-70HS / TL-70HC
Specialized wheelchair-accessible electrical instrument table designed for ophthalmic procedures, with motorized height adjustment, generous operating space, and an integrated switching power supply.
← Back to Medical Furniture
Key Benefits
- Accessible Design: Wide operating space gives wheelchair users full accessibility and a comfortable examination position.
- Strong and Durable: Heavy-duty structure is engineered for dependable daily clinical use.

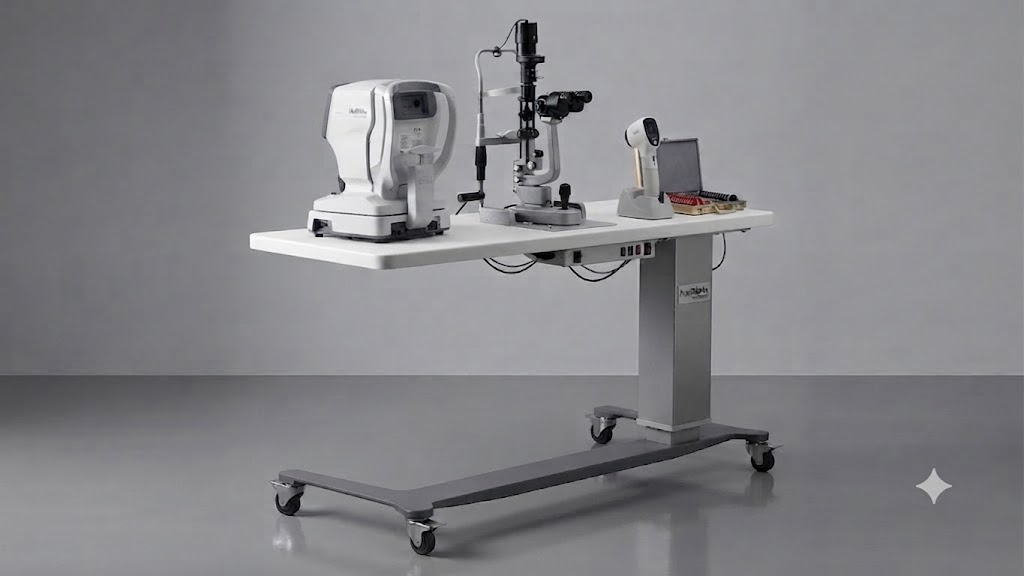

- Versatile Workstation: Provides working space for two instruments and one PC or laptop.
- Powered Lifting: TL-70 models lift up to 70 kg, while TL-110 models lift up to 110 kg with smooth, quiet height adjustment.
- Integrated Power Management: Built-in power box provides instrument power switching and supports two optional auxiliary power supplies.
- Ergonomic Clinical Layout: The open-base configuration supports patient access while keeping equipment within the practitioner’s reach.
- Mobile and Stable: Available on caster wheels with brakes or fixed legs for secure installation.
- Two Capacity Options: Choose the TL-70 for 70 kg capacity or TL-110 for 110 kg capacity.
- Optional Accessories: An optional PC carrier or equipment shelf can be attached to suit the clinical workflow.
Technical Specifications
| Specification | Product Data |
|---|---|
| Models | TL-70HS / TL-70HC / TL-110HS / TL-110HC |

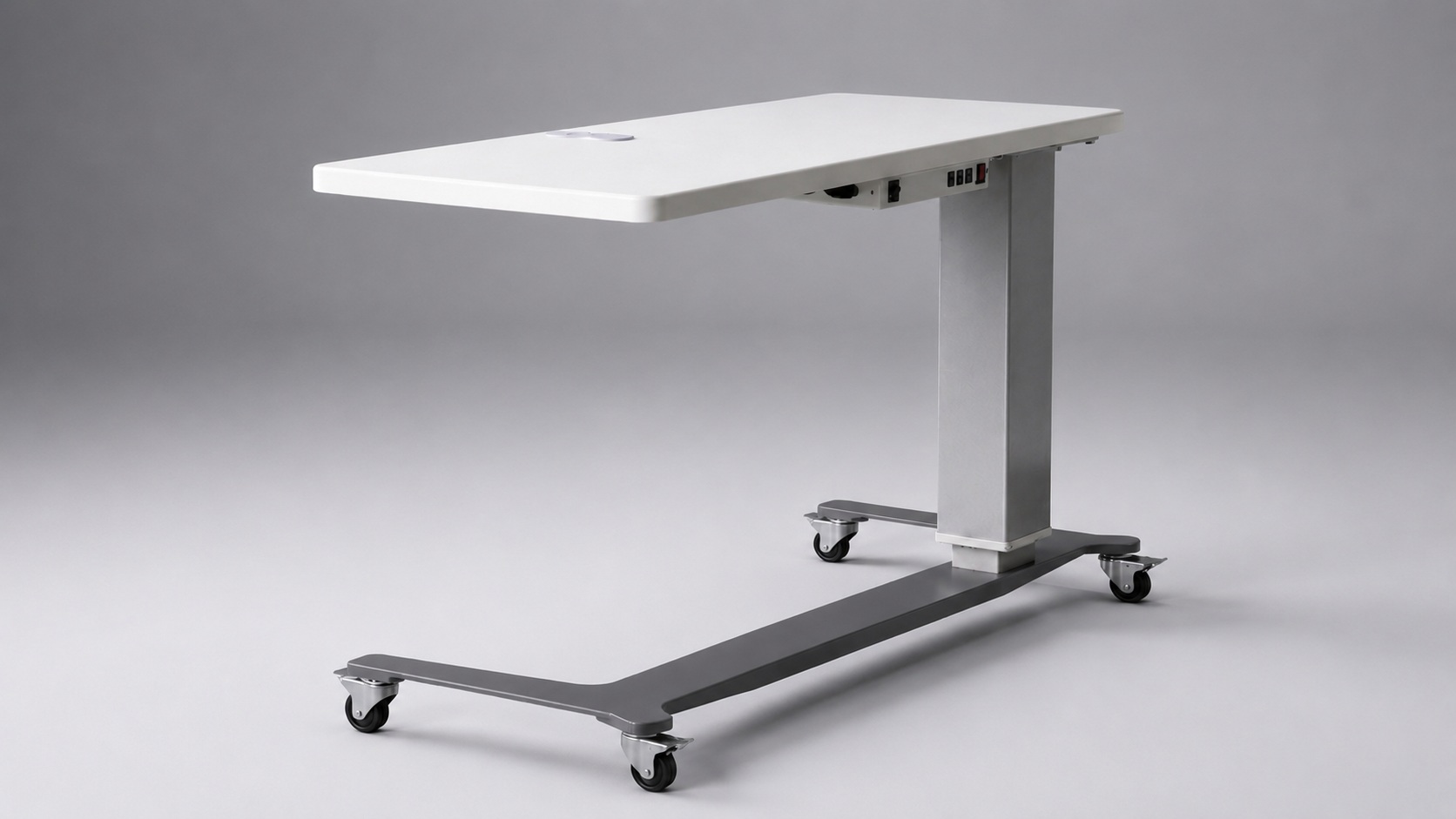

| Tabletop Configurations | HS straight tabletop; HC curved tabletop |
| TL-HC Tabletop Size | 127 × 41.5 cm (50 × 16.5 in) |
| TL-HS Tabletop Size | 122 × 46 cm (48 × 18 in) |
| Minimum Height | 68 cm (27 in) |
| Maximum Height | 90 cm (35 in) |
| Maximum Load | TL-70: 70 kg (154 lb); TL-110: 110 kg (242 lb) |
| Operating Voltage | Automatic 100–240 V AC |
| Operating Frequency | Automatic 50/60 Hz |
| Table Weight | Approximately 55 kg (121 lb) |
| Electrical Protection | Class I |
| Power Box | Integrated instrument switching power box with two optional auxiliary outputs |
| Base Options | Caster wheels with brakes or fixed legs |
| Optional Accessories | PC carrier or accessory shelf |
| Main Construction | Heavy-duty powder-coated steel structure |
| Safety Standard | Designed with reference to IEC 60601-1 |
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
