Order Picking
Inclined Picking Shelf Rack

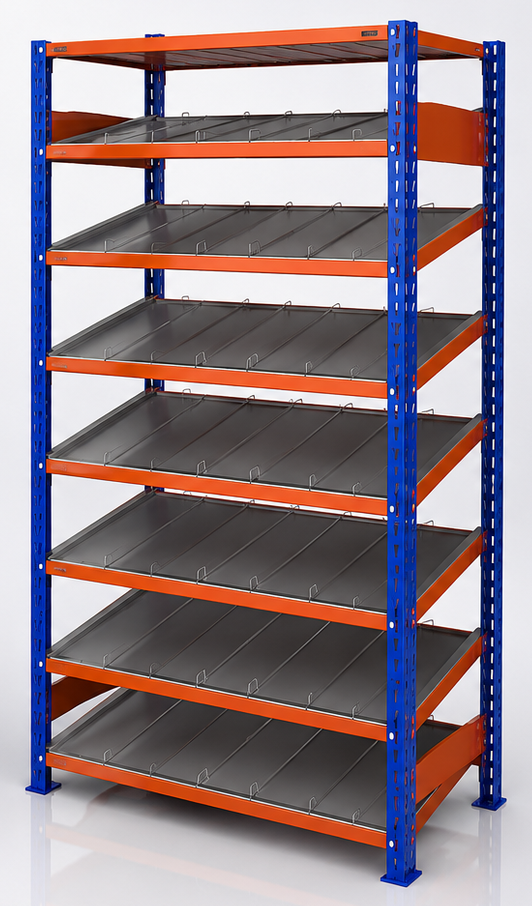

Multi-level steel picking rack with sloped divided shelves that present cartons, bins, and small parts clearly at the front of each lane.
Key Benefits
- Clear Product Presentation: Inclined shelves improve visibility of cartons, bins, and small parts at the picking face.
- Faster Manual Picking: Items are presented closer to the operator, reducing searching and unnecessary reach.
- Separated SKU Lanes: Adjustable dividers create organized channels for different components and stock-keeping units.
- Front Retention: Raised front edges and retainers help prevent items from sliding out of the shelf.
- Flexible Replenishment: The rack can be arranged for front replenishment or separated replenishment and picking sides.
- Adjustable Levels: Shelf heights and lane layouts can be adapted to changing carton and component dimensions.
- Compact Footprint: Multiple picking levels concentrate a broad SKU range within a small floor area.
- Custom Flow Options: Static inclined trays can be supplemented with roller or wheel-track lanes where FIFO gravity flow is required.
Technical Specifications
| Specification | Product Data |
|---|---|
| System Type | Manual picking rack with inclined steel tray shelves |
| Common Standard Heights | 1536 / 2000 / 2278 mm |
| Common Bay Widths | 900 / 1200 / 1500 / 1800 mm |
| Common Overall Depths | 600 / 900 / 1200 mm |
| Typical Flow Incline | 5°–7° for gravity roller or wheel-track variants; static trays selected by application |
| Custom Dimensions | Available to suit carton, tote, bin, reach, replenishment, and floor-space requirements |
| Shelf Construction | Sloped steel trays with dividers and front retention |
| Frame Construction | Slotted steel uprights, adjustable beams, bracing, and baseplates |
| Shelf Levels | Multiple picking levels shown; quantity configurable |
| Lane Configuration | Divider spacing selected for carton, bin, or component width |
| Shelf Inclination | Project-specific to suit item stability, reach, and retention |
| Stock Flow | Static inclined presentation; optional gravity roller/wheel-track configuration |
| Load Rating | Project-specific per shelf level and bay |
| Finish | Powder-coated steel with optional galvanized shelf components |
| Applications | Assembly lines, spare-parts stores, order picking, maintenance rooms, and production supermarkets |
The listed dimensions are practical modular options. The shelf angle, front stop, lane width, level spacing, overall size, and rated load must be selected for the actual container or product being stored; custom configurations are available.
Need specifications or customization?
Send your application, dimensions, load, finish, quantity, and delivery requirements.
