Industrial Storage

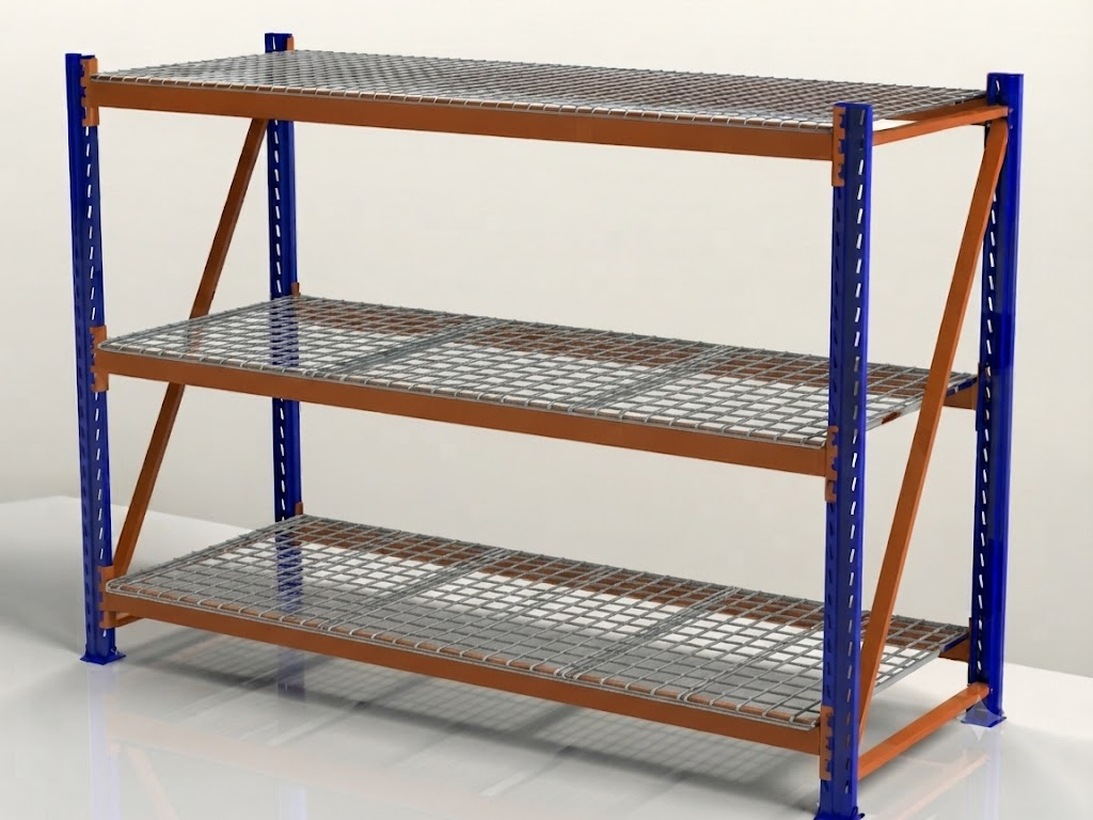

Industrial Mesh-Deck Shelving
Heavy-duty adjustable rack with open steel mesh decks for visible, ventilated storage of components, cartons, bins, and maintenance equipment.
Key Benefits
- Improved Visibility: Open mesh decks make stored items easier to identify from above and below.
- Air and Light Passage: The open deck reduces enclosed surfaces and improves ventilation and light penetration through the rack.
- Reduced Dust Accumulation: Mesh surfaces retain less dust and debris than fully closed deck panels.
- Support for Mixed Items: The deck provides continuous support for cartons, bins, parts, tooling, and irregular hand-loaded goods.
- Adjustable Storage Levels: Beam positions can be changed as product sizes and inventory profiles evolve.
- Fast Manual Picking: Open-front access supports direct retrieval and replenishment in workshops and warehouse pick areas.
- Modular Steel Construction: Braced upright frames and adjustable beams allow single or linked bay arrangements.
- Project-Specific Capacity: Mesh gauge, support channels, beam size, bay dimensions, and anchoring are selected for the required load.
Technical Specifications
| Specification | Product Data |
|---|---|
| System Type | Adjustable industrial shelving with steel mesh decks |
| Common Standard Heights | 1500 / 2000 / 2500 / 3000 mm |
| Common Standard Bay Widths | 1200 / 1500 / 1800 / 2400 / 2700 / 3000 mm |
| Common Standard Shelf Depths | 450 / 600 / 750 / 900 / 1000 / 1200 mm |
| Custom Dimensions | Available with project-specific mesh gauge, supports, level spacing, and bay geometry |
| Frame Construction | Slotted steel uprights with diagonal bracing and baseplates |
| Beam Connection | Adjustable hook-in beams with safety locking |
| Decking | Welded steel mesh panels with supports selected for the design load |
| Shelf Levels | Four levels shown; quantity and spacing configurable |
| Access | Open-front manual loading and picking |
| Load Rating | Project-specific; confirmed after structural selection and installation review |
| Finish | Powder-coated structural components; coated or galvanized mesh options |
| Installation | Free-standing only where engineered; floor anchoring recommended for industrial use |
| Applications | Spare parts, maintenance stores, workshops, cartons, bins, tools, and production components |
The listed sizes are common modular shelving options. Mesh-deck capacity depends on the deck construction, support spacing, beam selection, bay geometry, anchoring, and load distribution; custom sizes are available.
